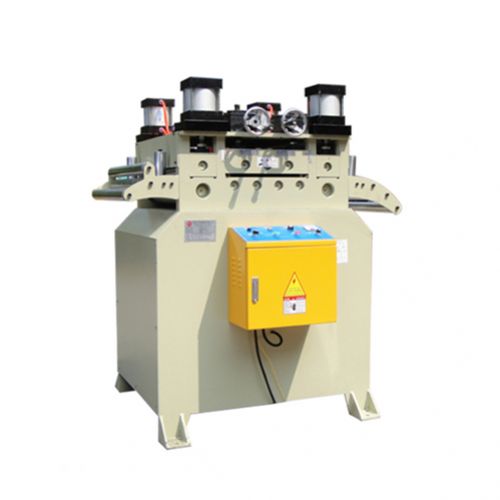

Thick Plate Straightener

2022/04/09 68
The straightening wheel uses a solid bearing, which is ground after high-frequency heat treatment and plated with hard chrome. After being straightened by this machine, it is smooth and smooth without indentation, and does not damage the surface of the material;
Details

The straightening wheel uses a solid bearing, which is ground after high-frequency heat treatment and plated with hard chrome. After being straightened by this machine, it is smooth and smooth without indentation, and does not damage the surface of the material;



This machine uses a large cylinder to press the material, and the straightening adjustment is adjusted by a synchronous worm gear and worm. The handle is rotated once, and the straightening upper wheel is only lowered by 1mm, which can be finely adjusted;


型號(hào)/Model

CLHS-200

CLHS-300

CLHS-400

CLHS-500

最大料寬(mm)
Max Width

200

300

400

500

料厚(mm)
Coil Thickness

1.0-6.0

1.0-6.0

1.0-6.0

1.0-6.0

馬達(dá)(hp)
Motor

3

3

4

5

整平輥輪
Straightening Roller

3/4
直徑:80

3/4
直徑:80

3/4
直徑:80

3/4
直徑:80

卷料內(nèi)徑(mm
Coil Inner Diameter

450-530

450-530

450-530

450-530

卷料外徑(mm
Coil Outer Diameter

1200

1200

1000

1200

電源
Power

AC三相380V

AC Three-phase 380V
